GDX1 Cigarette Packing Machine
GDX1 Cigarette Packing Machine
GDX1 Cigarette Packing Machine For Soft Packet
GDX1 Cigarette Packing Machine is also a medium-speed model, capable of producing 400 soft packets per minute. It was developed on the basis of X1SC/4350/PACK-OW, which technology was introduced through the Technology Transfer Agreement between G.D, and China National Tobacco Corp. It consists of an YB15 Tray Feeder, an YB25 Cigarette Soft Packer, an YB55 Cellophaner, an YB65 Cartoner and an YB95 Overwrapper.
GDX1 Cigarette Soft Packet Machine Technical Data
roduction Capacity: | 400 packets/min (40 cartons/min) |
Cigarette Specifications |
|
Diameter: | φ7.8mm |
Length: | 84mm |
Cigarette Collation: | 7-6-7 |
Packet Dimension: | 86mm ×54.5mm ×22.5mm |
Stamp Specifications |
|
Width: | 19mm ~23mm |
Length: | 42mm~50mm |
Carton Dimension: | 274mm × 87.5mm × 46.5mm |
(American and European style) | |
Noise Level: | ≤85 dB(A) |
Power: | 19.1kw |
Weight: | 9370kg |
Floor Area: | 7300mm × 7600mm |
(All the products specification can be configured upon customized requirements.) | |

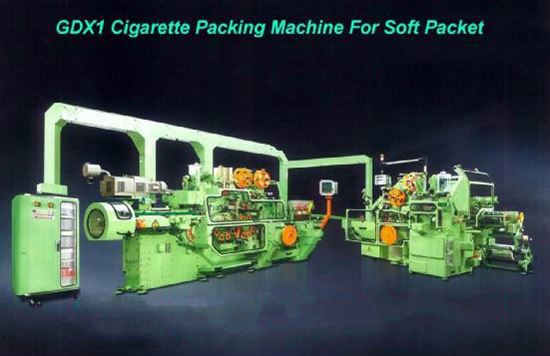

GDX1 Cigarette Soft Packing Machine picture
