HLP2 cigarette packing machine line

HLP2 Cigarette Packing Machine is used to pack cigarettes into packets.(This model is also called as HLP 180 cigarette packing machine) It is a well developed technology and are widely used in the cigarette factories all over the world. According to the customer's requirements, the machine has a wide working range like packing different numbers of cigarettes into one pack, such as 10's, 12's, 16's, 20's, 25's; different cigarette diameters and lengths such as 7.8*84mm, 7.8*100mm, 6.2*84mm, 5.4*100mm, 5.4*84mm; different packet forms and shapes such as square pack, round corner pack, bevel edge pack, shell&slide pack. In one word, we make machines according to customer's specific request.

HLP2 automatic cigarette packing machine has been widely used in cigarette industry for a few decades. In 1980S, China Tobacco Monopoly imported the production technologies of HLP 2 cigarette packing line and the related patents from Europe.

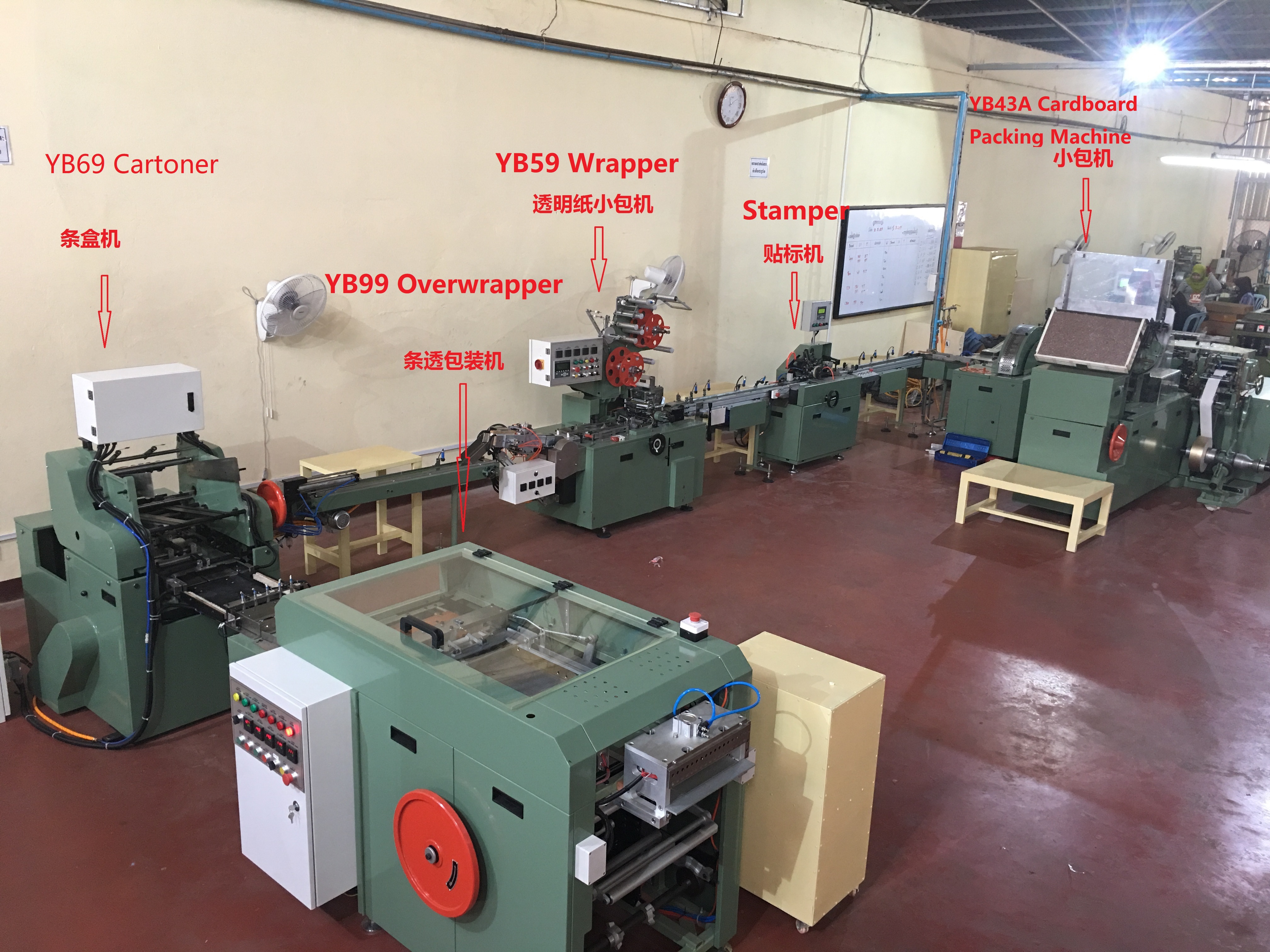

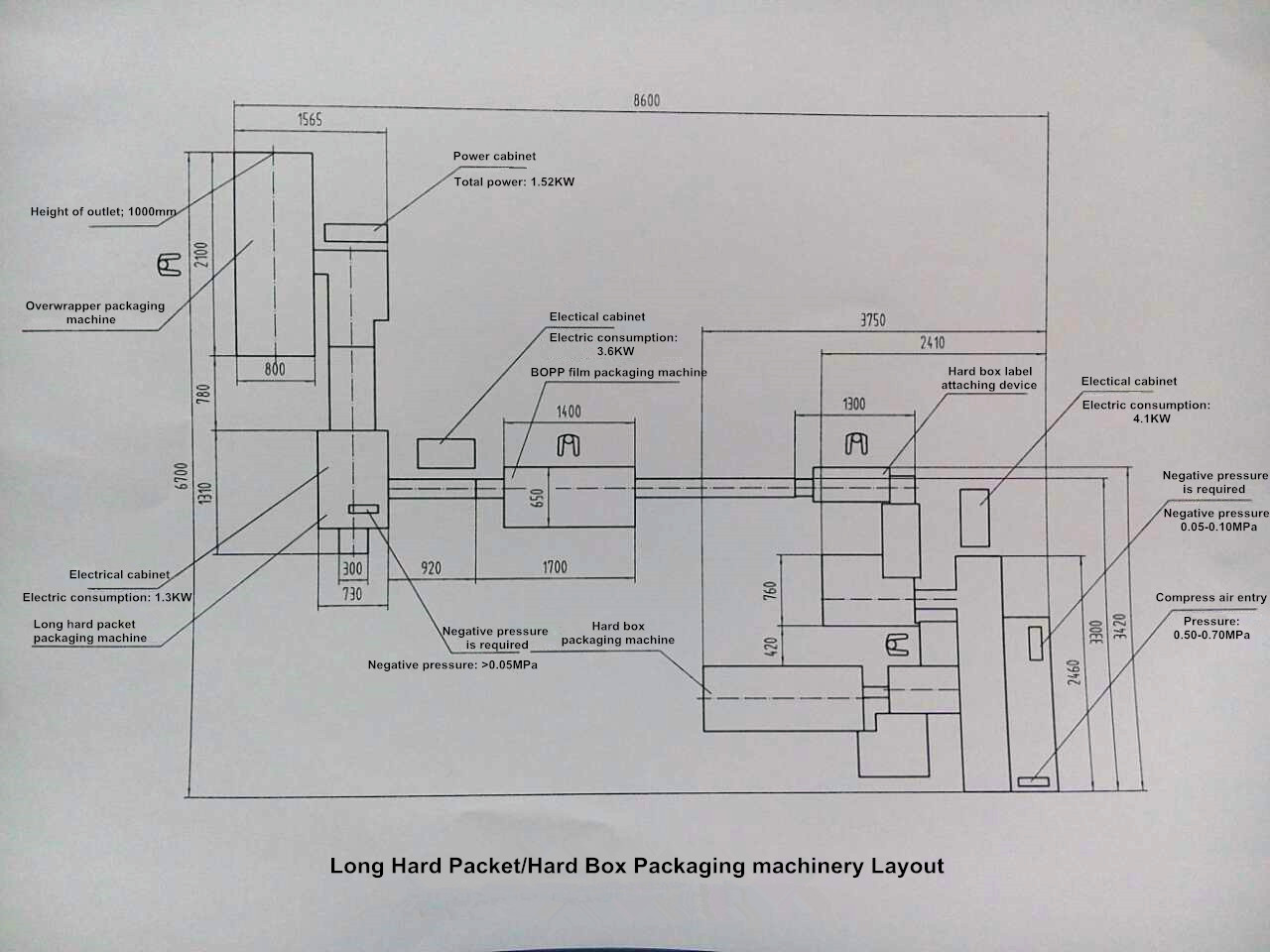

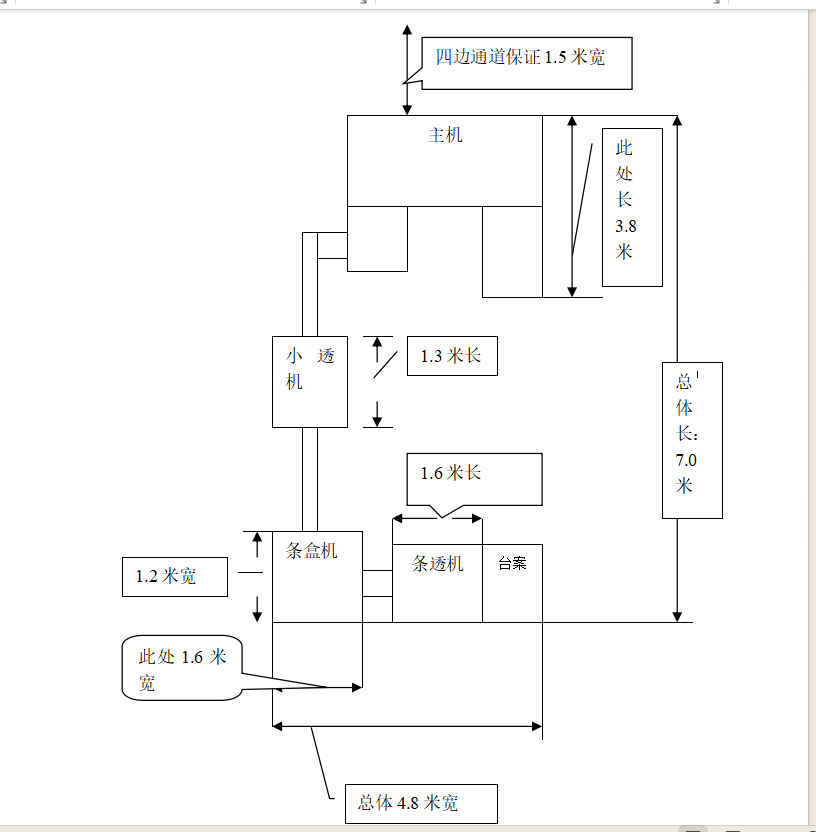

The layout of HLP2 automatic cigarette packing machine is shown as below picture:

HLP2 Tobacco Packing Machinery general

HLP2 Cigarette Packing Machine consist of bellow 5 parts:
•YB43 Packer
•Stamper
•YB59 Wrapper
•YB69 Cartoner
•YB99 Overwrapper.

It consists of hinged-lid packet packer, stamper, packet film wrapper, cartoner, and carton film overwrapper, and it can automatically perform the operation of hinged-lid packet packing, stamping, packet film wrapping, carton packing and carton film overwrapping.

This packing line is mainly composed for four single machines: YB43A Cardboard Packet Packing Machine, YB59A Packet Film Packing Machine, YB69A Carton Packing Machine and YB99 Carton Film Packing Machine (Coupon Insert Unit and YTB Tax Mark Sticking Unit are optional)

HLP2 Tobacco Packing Machinery parameter

#	名称 Items	参数 Parameters
1	Output Speed	180packs／min
2	Rated efficiency	80％
3	Voltage	380±10%
4	Frequency	50Hz
5	Air Pressure	>0.6MPa
6	Air Flow	>48m3/h
7	Pressure of the Vacuum Pump	>0.05MPa
8	Air Flow from the Vacuum Pump	>60m3/h
9	Ambient Temperature	25±5℃
10	Relative Humidity	55％-56％
11	Height above sea Level	not higher than 2000m
12	Dust Content	not higher than 3mg／m3
13	Cigarette Circumferencer	4 24.5±0.3mm
14	Cigarette Length	84±0.5mm
15	Way of Packets Packing	Hinged-Lid Packet
16	Collation	7-6-7
17	Overall Size of Packet	87.5x56x23.5mm
18	Way Of Carton Packing	Europe Standard
19	Size of Carton	282.5x90x48.5mm
20	Overall size of combination	7200x6700mm
21	Total Weight of the combination	6200kgs
22	PLC控制 PLC Control
23	Equipment Color(Paint by buyer require) Normally green

YB43 Packer,YB43A Cardboard Packet Packing Machine

1) YB43 Packer,YB43A Cardboard Packet Packing Machine
This product is used for hard packet carton packing of cigarettes with length of 84~100mm with different diameters, and in different arrangements (10’s in 5-5, 12’s in 6-6, 16’s in 8-8, and 20’s in 7-6-7 or 10-10 arrangements).

Features:
•It has features of slow starting, automatic protecting, automatic detecting, ejecting and failure indicating, easy operation, and convenient maintenance, which makes it and ideal cigarettes packing unit for small and medium size cigarette factory.
•Especially, with its low cost, good packing quality, and stable performance, it is suitable for special such as slim packing, long cigarette packing, round corner packing, octagonal packing, and 10’s ~ 16’s packing.

Technical Specifications:
•Capacity: 180 packs/min
•Cigarette Specification: Length: 84~100mm; Diameter: 5.4~8mm
•Packet Size: 87.5x56x23.5mm(King Size)
•Carton Size: 283x90x48.5mm(King Size)

YB43 cigarette packer

YB59 Wrapper,YB59A Packet Film Packing Machine

YB59A Packet Film Packing Machine is used for wrapping of cigarette packets with BOPP film, so as to keep the moisture content of cigarette unchanged and cigarette flavor fresh inside the packet, A tear tape is also winded around the BOPP film for easy opening of packet.

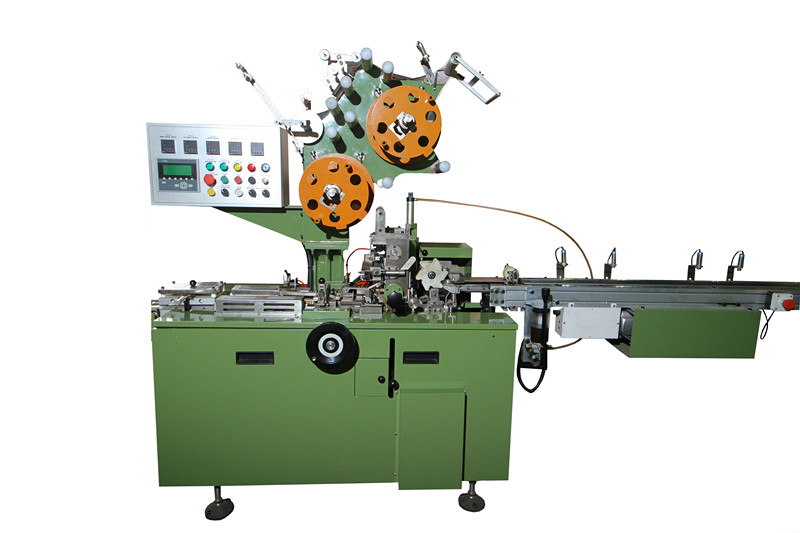

YB59 cigarette wrapper

Feature:
•Wide-range application to different cigarette packet dimensions, and widely adopted in industry field of food, medicine, cosmetics etc.
•High operation efficiency and low wastage.
•Easy operation, and convenient maintenance.

Technical Specifications:
•Capacity: 180 packs/min;
•Overall size: 2600x700x1600(including conveyor)
•Weight: 1450kg
•Power: 2.7KW

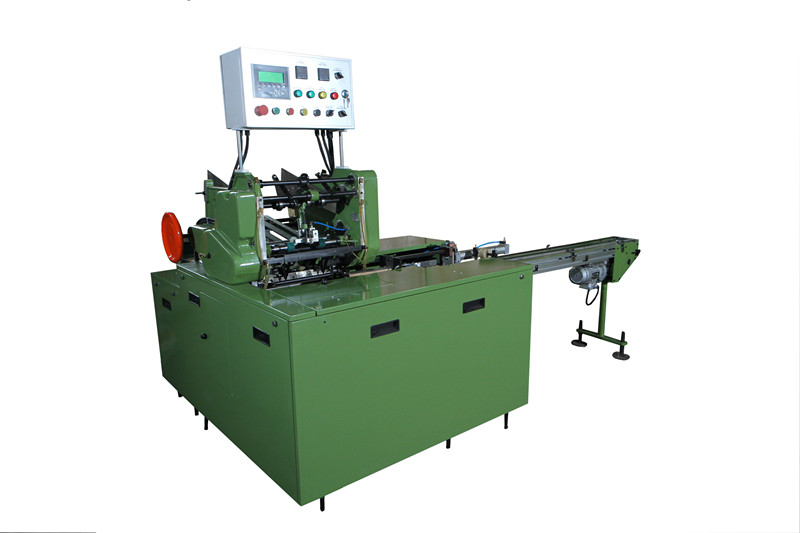

YB69 Cartoner,YB69A Carton Packing Machine

YB69A Carton Packing Machine is used for packing 10 packets of cigarette in two layers (2×5) into one carton.

Features:
•Wide-range application to different cigarette packet dimensions.
•High operation efficiency and low wastage.
•Compact structure and low energy consumption.
•Easy operation, and convenient maintenance.

Technical Specifications:
•Capacity: 18 cartons/min;
•Overall size: 1950x1800x1550
•Weight: 815kg
•Power: 1.5KW

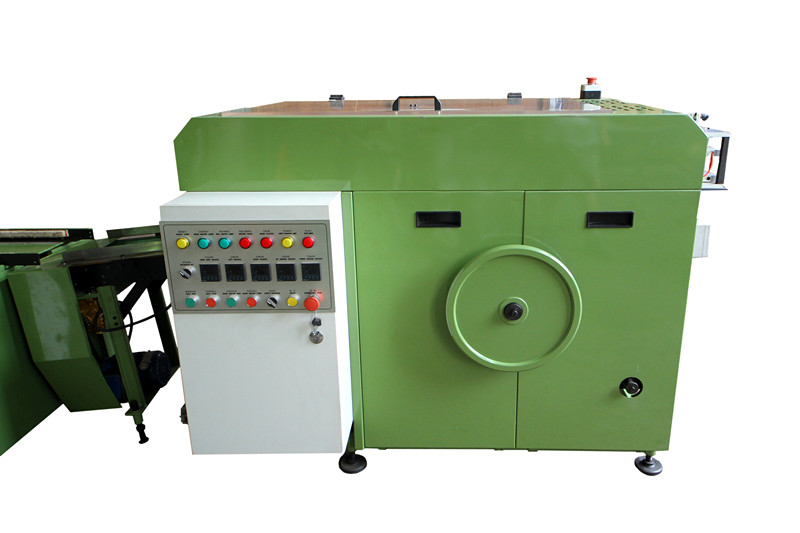

YB99 Overwrapper,YB99 Carton Film Packing Machine

5) YB99 Overwrapper,YB99 Carton Film Packing Machine
This product is used for overwrapping of cigarette carton with BOPP film. Also it can be used for naked overwrapping of cigarette packets (soft and hard packets applicable) in two layers (2×5 for 20’s packet) or in four layers (4×5 for 10’s packet) directly with BOPP film(without carton).

Feature:
•Wide-range application to different cigarette packet dimensions and arrangements.
•High operation efficiency and low wastage.
•Compact structure and low energy consumption.
•Easy operation, and convenient maintenance.

Technical Specifications:
•Capacity: 18 cartons/min;
or 180 packs/min. for 20’s packet naked wrapping;
or 360 packs/min. for 10’s packet naked wrapping;
•Overall size: 2100x1100x1200
•Weight: 600kg
•Power: 1.52KW

Stamper,YTB Tax Mark Sticking Unit

2) Stamper,YTB Tax Mark Sticking Unit
This product can automatically perform stamping of tax stamp to cigarette packet with different dimensions, such as king size packet, slim packet, long cigarette packet, round corner packet, and octagonal packet.

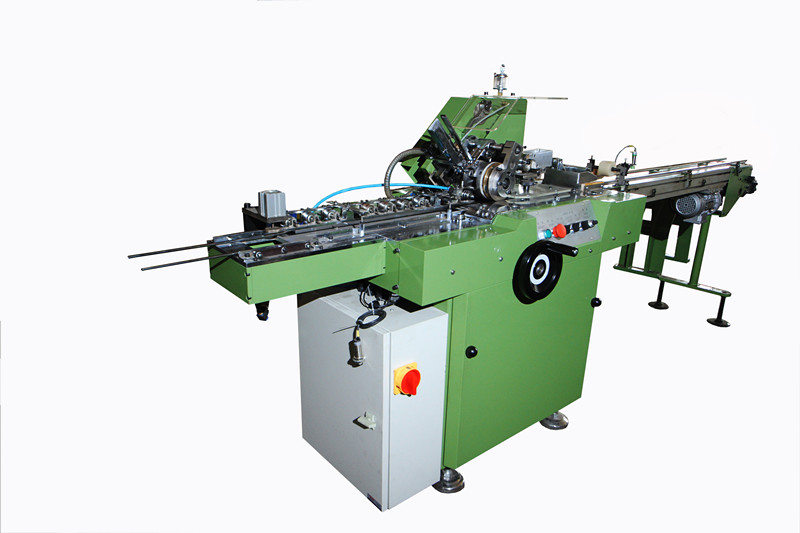

ytb stamper

Features:
•Wide-range application to different packet dimensions.
•Automatic detecting and ejecting packets without stamp.
•High operation efficiency and low wastage.
•Easy operation, and convenient maintenance.

Technical Specifications:
•Capacity: 180 packs/min;
•Tax stamp size: 45x20mm(or as per request)

Please check the following video for reference of YB43A packer which is most important part of HLP2 cigarette packing line.

Please check the following video for reference of whole line.

As a manufacturer , We can give you good price.
