MK9 commercial Cigarette Making Machine

Mark 9 cigarette making machine is called ZJ114 in China. The production technology and related patents were introduced into China in 1990s. The full production combination is consists of cigarette making part, plugged filter assembling part and tray filler. The machine could be tailored for different diameters and lengths of cigarettes. It is adopted with defect cigarette inspector and will remove the defect cigarettes automatically. Comparing with Mark 8, the more automatic Mark 9 will be much easier for operation.

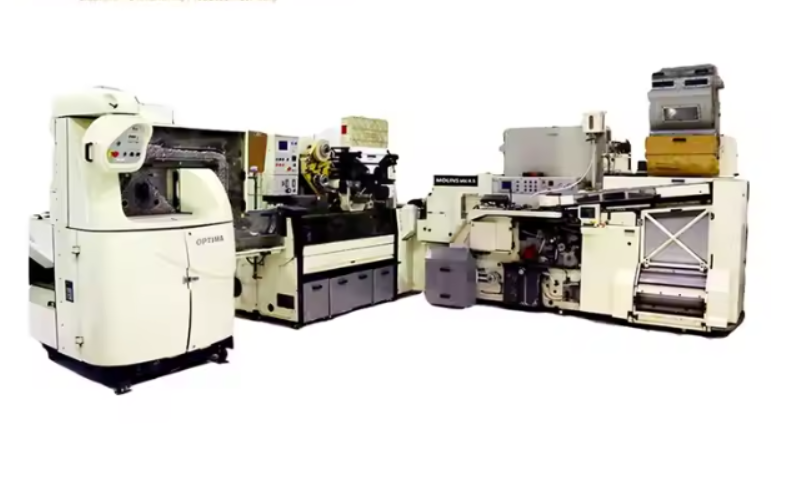

Mk9 picture

MK9 General Details

MK9 commercial Cigarette Making Machine has been upgraded with AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision. As the result, the operation of this machine is more precise and thus high quality output is guaranteed.

Microwave weight control system is adopted.

Friendly human-machine interface with features of easier production parameter setting, working condition real-time displaying, shift production statistic output, and machine fault alarming and trouble shooting solutions.

Features:
•Speed:5000cig./min.
•Cigarette length: 65-110mm(tobacco rod length and filter length can be tailor made)
•Cigarette diameter: 5.4-9mm
•Total power consumption: 50kw
•Machine measurements: (LxWxH)
Mark9 tobacco rod maker: 3630x1270x870mm 
MAXS filter assembler: 3340x1340x1820mm 
HCF80 Tray loader: 2350x2400x2100mm

mk9 parameter

Items	Parameters
	Output
1	Production speed(King Size)	5000cig/min
2	Production speed(Supper Slim)	3500cig/min
	Product Dimension
3	Filter Cigarette Length	65~110mm±0.5mm
4	Rod Cigarette Length	55~90mm
5	Rod Cigarette Diameter	5.4~9.0mm
	Ambient Conditions
6	Air Pressure	6×105pa
7	Supply Voltage	380VA±10%(3phase)
8	Frequency	50Hz±1Hz
9	Total power	50KW
10	Total Weight	8600KGS
	Outside dimension
11	Maker	4185×1390×2100MM
12	Plug Assembler	3557×1537×2210MM
13	Tray filler	3350×2530×1900MM
